Inherit from iEventCT. Class for CT list-mode events. More...

#include <iEventListCT.hh>

Inheritance diagram for iEventListCT:

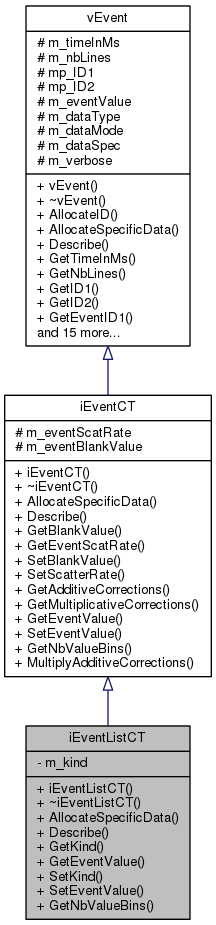

Collaboration diagram for iEventListCT:

Public Member Functions
	iEventListCT ()
	iEventListCT constructor. Initialize the member variables to their default values. More...

	~iEventListCT ()
	iEventListCT destructor. More...

int	AllocateSpecificData ()
	Function allowing the allocation of specific data. Return 0 by default for iEventListCT. More...

void	Describe ()
	This function can be used to get a description of the event printed out. More...

uint8_t	GetKind ()

FLTNB	GetEventValue (int a_bin)

void	SetKind (uint8_t a_value)
	Set the kind of event. More...

void	SetEventValue (int a_bin, FLTNBDATA a_value)
	Throw a warning (depending of verbosity) as the event value of a list-mode Event should be equal to 1 and not modified. More...

INTNB	GetNbValueBins ()
	Get the number of event value bins. More...

Public Member Functions inherited from iEventCT
	iEventCT ()
	iEventCT constructor. Initialize the member variables to their default values. More...

virtual	~iEventCT ()
	iEventCT destructor. More...

FLTNB	GetBlankValue ()

FLTNB	GetEventScatRate ()

void	SetBlankValue (FLTNBDATA a_value)
	Cast the FLTNBDATA value passed as parameter in FLTNB, and set it to the blank value. More...

void	SetScatterRate (FLTNBDATA a_value)
	Cast the FLTNBDATA value passed as parameter in FLTNB, and set it to the scatter correction rate. More...

FLTNB	GetAdditiveCorrections (int a_bin)

FLTNB	GetMultiplicativeCorrections ()

void	MultiplyAdditiveCorrections (FLTNB a_factor)
	Divide additive corrections by the provided factor (scatters) More...

Public Member Functions inherited from vEvent
	vEvent ()
	vEvent constructor. Initialize the member variables to their default values. More...

virtual	~vEvent ()
	vEvent destructor More...

int	AllocateID ()
	Instantiate the mp_ID1 and mp_ID2 indices arrays. More...

uint32_t	GetTimeInMs ()

uint16_t	GetNbLines ()

uint32_t	GetID1 (int a_line)

uint32_t	GetID2 (int a_line)

uint32_t *	GetEventID1 ()

uint32_t *	GetEventID2 ()

int	GetDataType ()

int	GetDataMode ()

void	SetTimeInMs (uint32_t a_value)
	Set the timestamp of the Event. More...

void	SetNbLines (uint16_t a_value)
	Set the number of lines of the Event. More...

void	SetID1 (int a_line, uint32_t a_value)
	Set the indice associated with the line index for the 1st ID of the Event. More...

void	SetID2 (int a_line, uint32_t a_value)
	Set the indice associated with the line index for the 2nd ID of the Event. More...

void	SetVerbose (int a_verbose)
	Set verbosity. More...

Private Attributes
uint8_t	m_kind

Additional Inherited Members
Protected Attributes inherited from iEventCT
FLTNB	m_eventScatRate

FLTNB	m_eventBlankValue

Protected Attributes inherited from vEvent
uint32_t	m_timeInMs

uint16_t	m_nbLines

uint32_t *	mp_ID1

uint32_t *	mp_ID2

FLTNB	m_eventValue

int	m_dataType

int	m_dataMode

int	m_dataSpec

int	m_verbose

Detailed Description

Inherit from iEventCT. Class for CT list-mode events.

It manages data and functions specific to list mode CT.

Definition at line 41 of file iEventListCT.hh.

Constructor & Destructor Documentation

iEventListCT::iEventListCT ( )

iEventListCT constructor. Initialize the member variables to their default values.

Definition at line 41 of file iEventListCT.cc.

iEventListCT::~iEventListCT ( )

iEventListCT destructor.

Definition at line 55 of file iEventListCT.cc.

Member Function Documentation

int iEventListCT::AllocateSpecificData ( )

inlinevirtual

Function allowing the allocation of specific data. Return 0 by default for iEventListCT.

Returns: 0 is success, positive value otherwise

Implements iEventCT.

Definition at line 64 of file iEventListCT.hh.

void iEventListCT::Describe ( )

virtual

This function can be used to get a description of the event printed out.

Reimplemented from iEventCT.

Definition at line 74 of file iEventListCT.cc.

FLTNB iEventListCT::GetEventValue ( int a_bin )

inlinevirtual

Returns: 1 as default for a list-mode Event (a_bin is dedicated to histogram mode, and ignored for list-mode)

Implements iEventCT.

Definition at line 85 of file iEventListCT.hh.

uint8_t iEventListCT::GetKind ( )

inline

Returns: the kind of coincidence

Definition at line 79 of file iEventListCT.hh.

Here is the caller graph for this function:

INTNB iEventListCT::GetNbValueBins ( )

inlinevirtual

Get the number of event value bins.

Returns: the number of value bins

Implements iEventCT.

Definition at line 106 of file iEventListCT.hh.

void iEventListCT::SetEventValue	(	int	a_bin,
		FLTNBDATA	a_value
	)

virtual

Throw a warning (depending of verbosity) as the event value of a list-mode Event should be equal to 1 and not modified.

Parameters

a_bin
a_value

Implements iEventCT.

Definition at line 62 of file iEventListCT.cc.

Here is the call graph for this function:

void iEventListCT::SetKind ( uint8_t a_value )

inline

Set the kind of event.

Parameters

a_value

Definition at line 92 of file iEventListCT.hh.

Member Data Documentation

uint8_t iEventListCT::m_kind

private

Event type : unknown (=0), true(=1), single scat(=2), multiple scat(=3)) Default value =0

Definition at line 116 of file iEventListCT.hh.
