This class is used to represent any CT camera with either a CBCT ascii description or a LUT file for any style of detector. More...

#include <iScannerCT.hh>

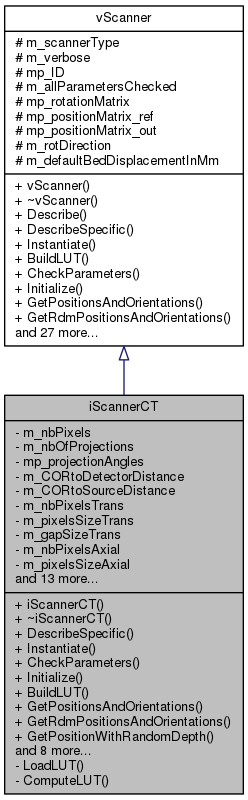

Inheritance diagram for iScannerCT:

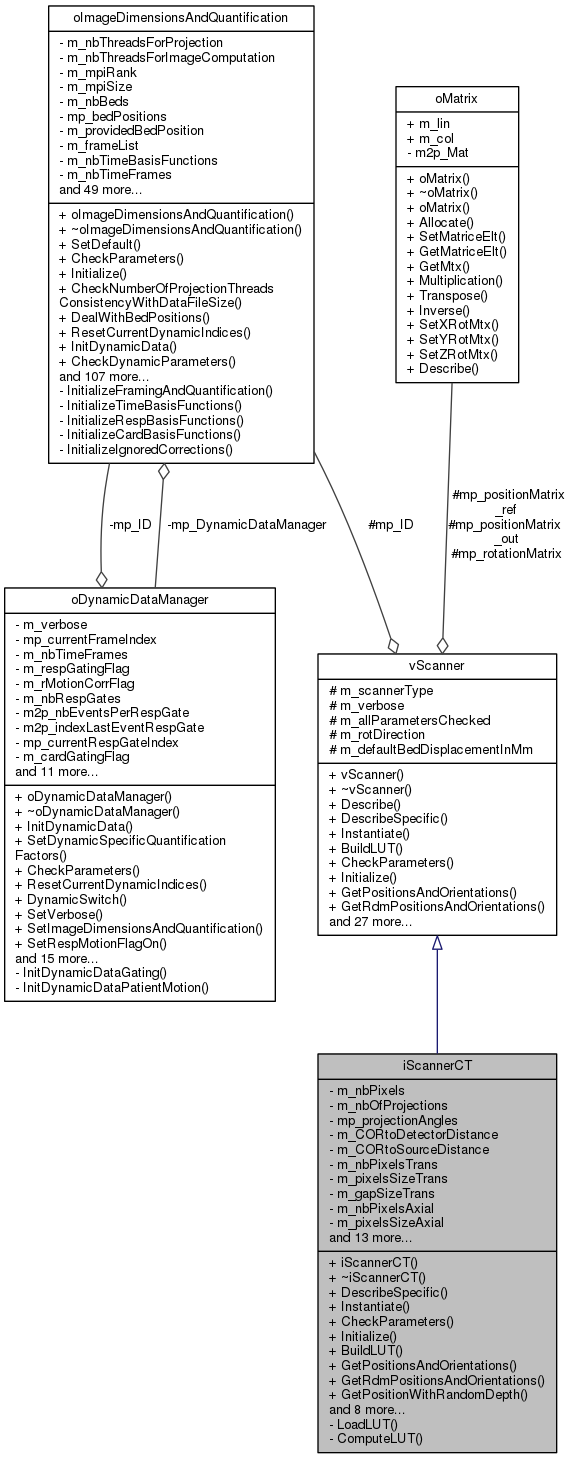

Collaboration diagram for iScannerCT:

Public Member Functions
	iScannerCT ()
	iScannerCT constructor. Initialize the member variables to their default values. More...

	~iScannerCT ()
	iScannerCT destructor. More...

void	DescribeSpecific ()
	Implementation of the pure virtual eponym function that simply prints info about the scanner. More...

int	Instantiate (bool a_scannerFileIsLUT)
	Get mandatory informations from the scanner file and allocate memory for the member variables. More...

int	CheckParameters ()
	Check that all parameters have been correctly initialized. More...

int	Initialize ()
	Check general initialization and set several parameters to their default value. More...

int	BuildLUT (bool a_scannerFileIsLUT)
	Call the functions to generate the LUT or read the user-made LUT depending on the user choice. More...

int	GetPositionsAndOrientations (int a_index1, int a_index2, FLTNB ap_Position1[3], FLTNB ap_Position2[3], FLTNB ap_Orientation1[3], FLTNB ap_Orientation2[3], FLTNB ap_POI1=NULL, FLTNB ap_POI2=NULL)
	This is a pure virtual method that must be implemented by children. Get the central positions and orientations of the scanner elements from their indices. More...

int	GetRdmPositionsAndOrientations (int a_index1, int a_index2, FLTNB ap_Position1[3], FLTNB ap_Position2[3], FLTNB ap_Orientation1[3], FLTNB ap_Orientation2[3])
	Get the focal point and random positions on the crystal surface and its orientations from the event indices. More...

int	GetPositionWithRandomDepth (int a_index1, int a_index2, FLTNB ap_Position1[3], FLTNB ap_Position2[3])
	Get the positions and orientations of scanner elements from their indices, with a random depth. More...

int	GetTwoCorners (int a_index1, int a_index2, FLTNB ap_CornerInf1[3], FLTNB ap_CornerSup1[3], FLTNB ap_CornerInf2[3], FLTNB ap_CornerSup2[3])
	Get the cartesian coordinaters of the two opposite corners of a scanner element. More...

int	GetEdgesCenterPositions (int a_index1, int a_index2, FLTNB ap_pos_line_point1[3], FLTNB ap_pos_line_point2[3], FLTNB ap_pos_point1_x[4], FLTNB ap_pos_point1_y[4], FLTNB ap_pos_point1_z[4], FLTNB ap_pos_point2_x[4], FLTNB ap_pos_point2_y[4], FLTNB ap_pos_point2_z[4])
	Implementation of the pure virtual function from vScanner. Get the cartesian coordinaters of the center of the 4 edges of the detection element and the source. It is typically used for the Distance Driven projector. More...

int	GetGeometricInfoFromDataFile (string a_pathToDF)
	Recover geometric informations specific to the scanner class from the datafile header. More...

int	GetSystemNbElts ()
	Get the number of elements in the system. For a CT system, returns the number of pixels in the detector. More...

void	ShowHelp ()
	Display help. More...

FLTNB	GetDetectionElementSizeTrans ()

FLTNB	GetDetectionElementSizeAxial ()

int	GetCTSpecificParameters (uint16_t ap_nbOfProjections, FLTNB &ap_angles, int *ap_detectorRotDirection)
	Set pointers passed in argument with the related CT specific variables This function is used to recover these values in the datafile object. More...

Public Member Functions inherited from vScanner
	vScanner ()
	vScanner constructor. Initialize the member variables to their default values. More...

virtual	~vScanner ()
	vScanner destructor. More...

void	Describe ()
	A function used to describe the generic parts of the datafile. More...

virtual int	IsAvailableLOR (int a_elt1, int a_elt2)
	This function is implemented in child classes. Check if the LOR is available according to the scanner restrictions. More...

int	GetScannerType ()

string	GetScannerTypeString ()

void	SetVerbose (int a_verboseLevel)
	Set verbosity. More...

void	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ID)
	Set the pointer to the image dimensions and quantification object. More...

FLTNB	GetDefaultBedDisplacementInMm ()

virtual int	SetPETMaxAxialDiffmm (FLTNB a_maxAxialDiffmm)
	Set the maximal axial difference in mm between 2 crystals forming a lor. More...

virtual int	SetRotDirection (string a_rotDirection)
	Set rotation direction of the system. More...

virtual int	PROJ_GetPETSpecificParameters (FLTNB *ap_maxRingDiff)
	Get geometric PET specific parameters to initialize the datafile. More...

virtual int	GetSPECTSpecificParameters (uint16_t ap_nbOfProjections, uint16_t ap_nbHeads, FLTNB ap_acquisitionZoom, uint16_t ap_nbOfBins, FLTNB ap_pixSizeXY, FLTNB &ap_angles, FLTNB &ap_CORtoDetectorDistance, int ap_headRotDirection)
	Recover geometric SPECT specific parameters from the scanner to initialize the datafile. More...

virtual int	PROJ_SetSPECTNbBins (uint16_t *ap_nbOfBins)
	Set SPECT number of Bins. More...

virtual int	PROJ_SetSPECTNbProjections (uint32_t a_nbOfProjections)
	Set SPECT number of views. More...

virtual int	PROJ_SetSPECTAngles (FLTNB *ap_projectionAngles)
	Set SPECT projection angles. More...

virtual int	PROJ_SetSPECTCORtoDetectorDistance (FLTNB a_CORtoDetectorDistance)
	Set distance between center of rotation and SPECT detectors. More...

virtual uint16_t	PROJ_GetSPECTNbProjections ()
	return the total number of projections for a SPECT acquisition More...

virtual uint16_t	PROJ_GetSPECTNbPixels ()
	return the total number of pixels for a SPECT reconstruction More...

Private Member Functions
int	LoadLUT ()
	Load a precomputed scanner LUT. More...

int	ComputeLUT ()
	Computes the LUT of the scanner from a generic (.geom) file. More...

Private Attributes
int	m_nbPixels

uint16_t	m_nbOfProjections

FLTNB *	mp_projectionAngles

FLTNB	m_CORtoDetectorDistance

FLTNB	m_CORtoSourceDistance

uint32_t	m_nbPixelsTrans

FLTNB	m_pixelsSizeTrans

FLTNB	m_gapSizeTrans

uint32_t	m_nbPixelsAxial

FLTNB	m_pixelsSizeAxial

FLTNB	m_gapSizeAxial

FLTNB	m_detectorDepth

FLTNB	m_spotSizeWidth

FLTNB	m_spotSizeDepth

FLTNB *	mp_crystalCentralPositionX

FLTNB *	mp_crystalCentralPositionY

FLTNB *	mp_crystalCentralPositionZ

FLTNB *	mp_crystalOrientationX

FLTNB *	mp_crystalOrientationY

FLTNB *	mp_crystalOrientationZ

FLTNB *	mp_sourcePositionX

FLTNB *	mp_sourcePositionY

FLTNB *	mp_sourcePositionZ

Additional Inherited Members
Protected Attributes inherited from vScanner
int	m_scannerType

int	m_verbose

oImageDimensionsAndQuantification *	mp_ID

bool	m_allParametersChecked

oMatrix *	mp_rotationMatrix

oMatrix *	mp_positionMatrix_ref

oMatrix *	mp_positionMatrix_out

int	m_rotDirection

FLTNB	m_defaultBedDisplacementInMm

Detailed Description

This class is used to represent any CT camera with either a CBCT ascii description or a LUT file for any style of detector.

Inherits from vScanner

Definition at line 45 of file iScannerCT.hh.

Constructor & Destructor Documentation

iScannerCT::iScannerCT ( )

iScannerCT constructor. Initialize the member variables to their default values.

Definition at line 40 of file iScannerCT.cc.

iScannerCT::~iScannerCT ( )

iScannerCT destructor.

Definition at line 75 of file iScannerCT.cc.

Member Function Documentation

int iScannerCT::BuildLUT ( bool a_scannerFileIsLUT )

virtual

Call the functions to generate the LUT or read the user-made LUT depending on the user choice.

Parameters

a_scannerFileIsLUT : boolean indicating if the file describing the CT camera is a generic file (0) or custom Look-up-table (1)

Returns: 0 if success, positive value otherwise

Implements vScanner.

Definition at line 231 of file iScannerCT.cc.

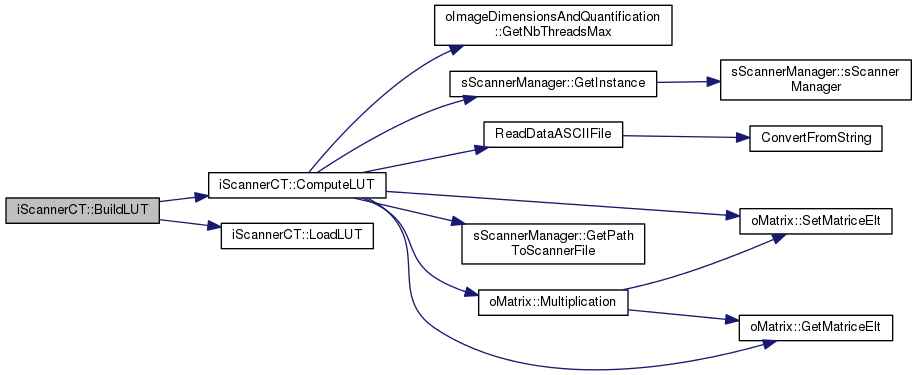

Here is the call graph for this function:

int iScannerCT::CheckParameters ( )

virtual

Check that all parameters have been correctly initialized.

Returns: 0 if success, positive value otherwise

Implements vScanner.

Definition at line 279 of file iScannerCT.cc.

int iScannerCT::ComputeLUT ( )

privatevirtual

Computes the LUT of the scanner from a generic (.geom) file.

Read mandatory data from the geom file. Then compute the LUT elements for each crystal from the geometry described in the file
Compute the look-up-tables of the system containing the locations of the scanner elements center in space and their orientations

Reimplemented from vScanner.

Definition at line 398 of file iScannerCT.cc.

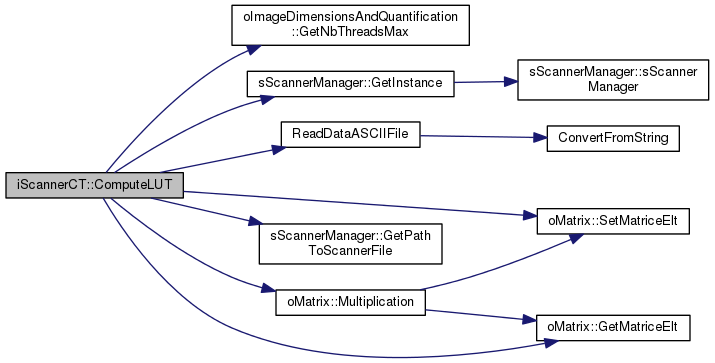

Here is the call graph for this function:

Here is the caller graph for this function:

void iScannerCT::DescribeSpecific ( )

virtual

Implementation of the pure virtual eponym function that simply prints info about the scanner.

Implements vScanner.

Definition at line 100 of file iScannerCT.cc.

int iScannerCT::GetCTSpecificParameters	(	uint16_t *	ap_nbOfProjections,
		FLTNB *&	ap_angles,
		int *	ap_detectorRotDirection
	)

virtual

Set pointers passed in argument with the related CT specific variables
This function is used to recover these values in the datafile object.

Parameters

ap_nbOfProjections	: total number of views
ap_angles	: Array containing angles of each projection view
ap_detectorRotDirection	: detector rotation direction

Returns: 0 if success, positive value otherwise

Reimplemented from vScanner.

Definition at line 843 of file iScannerCT.cc.

FLTNB iScannerCT::GetDetectionElementSizeAxial ( )

inlinevirtual

Returns: return the axial size of the detection element

Implements vScanner.

Definition at line 222 of file iScannerCT.hh.

FLTNB iScannerCT::GetDetectionElementSizeTrans ( )

inlinevirtual

Returns: return the transaxial size of the detection element

Implements vScanner.

Definition at line 216 of file iScannerCT.hh.

int iScannerCT::GetEdgesCenterPositions	(	int	a_index1,
		int	a_index2,
		FLTNB	ap_pos_line_point1[3],
		FLTNB	ap_pos_line_point2[3],
		FLTNB	ap_pos_point1_x[4],
		FLTNB	ap_pos_point1_y[4],
		FLTNB	ap_pos_point1_z[4],
		FLTNB	ap_pos_point2_x[4],
		FLTNB	ap_pos_point2_y[4],
		FLTNB	ap_pos_point2_z[4]
	)

virtual

Implementation of the pure virtual function from vScanner.
Get the cartesian coordinaters of the center of the 4 edges of the detection element and the source.
It is typically used for the Distance Driven projector.

Parameters

int	a_index1 : 1st index of the event
int	a_index2 : 2nd index of the event
FLTNB	ap_pos_line_point1[3] : current position of point 1 of the ray (supposed to be centered in the section of the detection element and at the desired depth of interaction)
FLTNB	ap_pos_line_point2[3] : current position of point 1 of the ray (supposed to be centered in the section of the detection element and at the desired depth of interaction)
FLTNB	ap_pos_point1_x[4] : the resulting X position of the 4 edges of point 1
FLTNB	ap_pos_point1_y[4] : the resulting Y position of the 4 edges of point 1
FLTNB	ap_pos_point1_z[4] : the resulting Z position of the 4 edges of point 1
FLTNB	ap_pos_point2_x[4] : the resulting X position of the 4 edges of point 1
FLTNB	ap_pos_point2_y[4] : the resulting Y position of the 4 edges of point 1
FLTNB	ap_pos_point2_z[4] : the resulting Z position of the 4 edges of point 1

Returns: 0 if success, positive value otherwise

Implements vScanner.

Definition at line 668 of file iScannerCT.cc.

int iScannerCT::GetGeometricInfoFromDataFile ( string a_pathToDF )

virtual

Recover geometric informations specific to the scanner class from the datafile header.

Parameters

a_pathToDF : string containing the path to datafile header

-Recover nb of bins and projections
-Recover the projection angles from the header (directly read from the datafile, or extrapolated from a first and last angle)
-Recover the distance between the gamma camera detector surfaces and the center of rotation
(directly read from the datafile, or extracted from the gamma camera configuratino file)

Returns: 0 if success, positive value otherwise

Implements vScanner.

Definition at line 743 of file iScannerCT.cc.

Here is the call graph for this function:

int iScannerCT::GetPositionsAndOrientations	(	int	a_index1,
		int	a_index2,
		FLTNB	ap_Position1[3],
		FLTNB	ap_Position2[3],
		FLTNB	ap_Orientation1[3],
		FLTNB	ap_Orientation2[3],
		FLTNB *	ap_POI1 = `NULL`,
		FLTNB *	ap_POI2 = `NULL`
	)

virtual

This is a pure virtual method that must be implemented by children.
Get the central positions and orientations of the scanner elements from their indices.

Parameters

a_index1	: 1st index of the event
a_index2	: 2nd index of the event
ap_Position1[3]	: x,y,z cartesian position of the point related to the 1st index (see child function for more details)
ap_Position2[3]	: x,y,z cartesian position of the point related to the 2st index (see child function for more details)
ap_Orientation1[3]	: x,y,z components of the orientation vector related to the 1st index (see child function for more details)
ap_Orientation2[3]	: x,y,z components of the orientation vector related to the 2nd index (see child function for more details)
ap_POI1	: x,y,z components of the Point Of Interation related to the 1st index (see child function for more details)
ap_POI2	: x,y,z components of the Point Of Interation related to the 2nd index (see child function for more details)

Returns: 0 if success, positive value otherwise

Implements vScanner.

Definition at line 548 of file iScannerCT.cc.

int iScannerCT::GetPositionWithRandomDepth	(	int	a_index1,
		int	a_index2,
		FLTNB	ap_Position1[3],
		FLTNB	ap_Position2[3]
	)

virtual

Get the positions and orientations of scanner elements from their indices, with a random depth.

Parameters

a_index1	:
a_index2	: index of the crystal
ap_Position1[3]	:
ap_Position2[3]	: x,y,z cartesian position of the point related to the crystal

Implements vScanner.

Definition at line 641 of file iScannerCT.cc.

int iScannerCT::GetRdmPositionsAndOrientations	(	int	a_index1,
		int	a_index2,
		FLTNB	ap_Position1[3],
		FLTNB	ap_Position2[3],
		FLTNB	ap_Orientation1[3],
		FLTNB	ap_Orientation2[3]
	)

virtual

Get the focal point and random positions on the crystal surface and its orientations from the event indices.

Parameters

a_index1	: 1st index of the event (projection angle)
a_index2	: 2nd index of the event (crystal index in the gamma camera)
ap_Position1[3]	: x,y,z cartesian position of the focal point
ap_Position2[3]	: x,y,z cartesian position of the crystal
ap_Orientation1[3]	: return -1 by default (no orientation components required for the focal point)
ap_Orientation2[3]	: x,y,z components of the orientation vector related to the crystal

Computed the LUT index described by the projection angle and crystal index passed in parameters.
- Compute random positions on the surface of the crystal
- Write the corresponding random cartesian coordinates in the positions parameters.

Implements vScanner.

Definition at line 625 of file iScannerCT.cc.

int iScannerCT::GetSystemNbElts ( )

inlinevirtual

Get the number of elements in the system. For a CT system, returns the number of pixels in the detector.

Returns: a number of crystals

Implements vScanner.

Definition at line 204 of file iScannerCT.hh.

int iScannerCT::GetTwoCorners	(	int	a_index1,
		int	a_index2,
		FLTNB	ap_CornerInf1[3],
		FLTNB	ap_CornerSup1[3],
		FLTNB	ap_CornerInf2[3],
		FLTNB	ap_CornerSup2[3]
	)

virtual

Get the cartesian coordinaters of the two opposite corners of a scanner element.

Parameters

a_index1	: index of the projection angle
a_index2	: index of the crystal
ap_CornerInf1[3]
ap_CornerSup1[3]
ap_CornerInf2[3]
ap_CornerSup2[3]

Implements vScanner.

Definition at line 654 of file iScannerCT.cc.

int iScannerCT::Initialize ( )

virtual

Check general initialization and set several parameters to their default value.

Returns: 0 if success, positive value otherwise

Implements vScanner.

Definition at line 361 of file iScannerCT.cc.

int iScannerCT::Instantiate ( bool a_scannerFileIsLUT )

virtual

Get mandatory informations from the scanner file and allocate memory for the member variables.

Parameters

a_scannerFileIsLUT : boolean indicating if the file describing the system is a generic file (0) or custom Look-up-table (1)

Returns: 0 if success, positive value otherwise

Implements vScanner.

Definition at line 157 of file iScannerCT.cc.

Here is the call graph for this function:

int iScannerCT::LoadLUT ( )

privatevirtual

Load a precomputed scanner LUT.

Read mandatory data from the header of the LUT. Then load the LUT elements for each pixel

Reimplemented from vScanner.

Definition at line 385 of file iScannerCT.cc.

Here is the caller graph for this function:

void iScannerCT::ShowHelp ( )

virtual

Display help.

Implements vScanner.

Definition at line 870 of file iScannerCT.cc.

Member Data Documentation

FLTNB iScannerCT::m_CORtoDetectorDistance

private

Distance between the center of rotation and the detector surface. One value for each projection angle.

Definition at line 265 of file iScannerCT.hh.

FLTNB iScannerCT::m_CORtoSourceDistance

private

Distance between the center of rotation and the source surface. One value for each projection angle.

Definition at line 266 of file iScannerCT.hh.

FLTNB iScannerCT::m_detectorDepth

private

Depth of detection pixels

Definition at line 276 of file iScannerCT.hh.

FLTNB iScannerCT::m_gapSizeAxial

private

Gap size between each axial pixel as defined in the system file

Definition at line 274 of file iScannerCT.hh.

FLTNB iScannerCT::m_gapSizeTrans

private

Gap size between each transaxial pixe as defined in the system filel

Definition at line 270 of file iScannerCT.hh.

uint16_t iScannerCT::m_nbOfProjections

private

Total number of projection angles

Definition at line 263 of file iScannerCT.hh.

int iScannerCT::m_nbPixels

private

Total number of pixels in the detector

Definition at line 261 of file iScannerCT.hh.

uint32_t iScannerCT::m_nbPixelsAxial

private

Total number of axial pixels as defined in the system file

Definition at line 272 of file iScannerCT.hh.

uint32_t iScannerCT::m_nbPixelsTrans

private

Total number of transaxial pixels as defined in the system file

Definition at line 268 of file iScannerCT.hh.

FLTNB iScannerCT::m_pixelsSizeAxial

private

Size of axial pixels as defined in the system file

Definition at line 273 of file iScannerCT.hh.

FLTNB iScannerCT::m_pixelsSizeTrans

private

Size of transaxial pixels as defined in the system file

Definition at line 269 of file iScannerCT.hh.

FLTNB iScannerCT::m_spotSizeDepth

private

Depth of the source, along the direction of the scanner radius

Definition at line 278 of file iScannerCT.hh.

FLTNB iScannerCT::m_spotSizeWidth

private

Width of the source, along the direction tangential to the scanner radius

Definition at line 277 of file iScannerCT.hh.

FLTNB* iScannerCT::mp_crystalCentralPositionX

private

Cartesian coordinate on X-axis of the center of each crystal, at each projection

Definition at line 281 of file iScannerCT.hh.

FLTNB* iScannerCT::mp_crystalCentralPositionY

private

Cartesian coordinate on Y-axis of the center of each crystal, at each projection

Definition at line 282 of file iScannerCT.hh.

FLTNB* iScannerCT::mp_crystalCentralPositionZ

private

Cartesian coordinate on Z-axis of the center of each crystal, at each projection

Definition at line 283 of file iScannerCT.hh.

FLTNB* iScannerCT::mp_crystalOrientationX

private

X-axis orientation of each crystal, at each projection

Definition at line 285 of file iScannerCT.hh.

FLTNB* iScannerCT::mp_crystalOrientationY

private

Y-axis orientation of each crystal, at each projection

Definition at line 286 of file iScannerCT.hh.

FLTNB* iScannerCT::mp_crystalOrientationZ

private

Z-axis orientation of each crystal, at each projection

Definition at line 287 of file iScannerCT.hh.

FLTNB* iScannerCT::mp_projectionAngles

private

Array containing all the projection angles ('m_nbOfProjections' elements)

Definition at line 264 of file iScannerCT.hh.

FLTNB* iScannerCT::mp_sourcePositionX

private

X-axis position of the focal point for each crystal, at each projection

Definition at line 289 of file iScannerCT.hh.

FLTNB* iScannerCT::mp_sourcePositionY

private

Y-axis position of the focal point for each crystal, at each projection

Definition at line 290 of file iScannerCT.hh.

FLTNB* iScannerCT::mp_sourcePositionZ

private

Z-axis position of the focal point for each crystal, at each projection

Definition at line 291 of file iScannerCT.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
